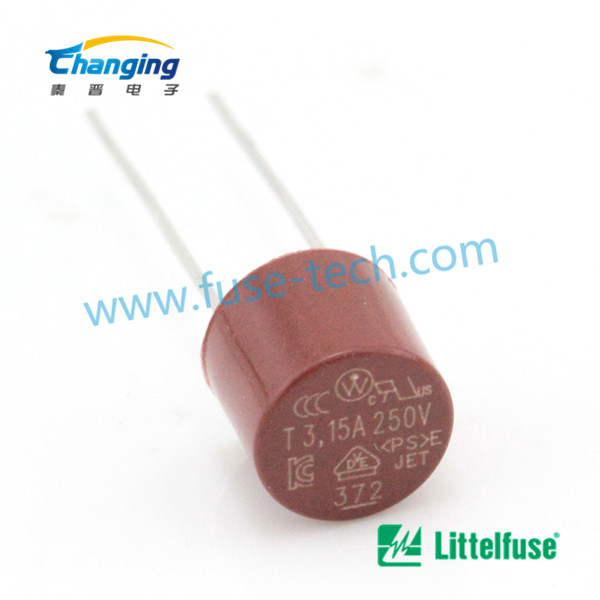

3721315
力特3721315 無鉛 降低對(duì)PCB板的空間要求 可直接軟焊或插入 獲國際認(rèn)證 低內(nèi)阻 防電擊外殼 無鹵素
| 型號(hào) | AmpCode |
Rated Current |
Voltage Rating |
Bearking Capacity |
VoltageDrop 1.0×1N max.(mV) |
PowerDissipation 1.5×1Nmax.(mW) |
MeitingIntegral 10×1Nmin.（A2s) |
Data Sheet |
|---|---|---|---|---|---|---|---|---|
| 3721630 | 1630 | 6.30A | 250V | 50A / 250 VAC | 58 | 1250 | 105 |
 |
| 3721400 | 1400 | 4.00A | 250V | 40A / 250 VA | 75 | 1200 | 95 |
|
| 3721315 | 1315 | 3.15A | 250V | 35A/250VAC | 80 | 1100 | 60 |
|
| 3721250 | 1250 | 2.50A | 250V | 35A/250VAC | 80 | 700 | 35 |
|
| 3721160 | 1160 | 1.60A | 250V | 35A/250VAC | 95 | 450 | 14 |
|
| 3720800 | 0800 | 800mA | 250V | 35A/250VAC | 110 | 220 | 3.8 |
|
| 3720630 | 0630 | 630mA | 250V | 35A/250VAC | 120 | 200 | 2.5 |
|
| 3720500 | 0500 | 500mA | 250V | 35A/250VAC | 125 | 180 | 1.3 |
|
| 3720400 | 0400 | 400mA | 250V | 35A/250VAC | 130 | 170 | 0.9 |
|
| 3720315 | 0315 | 315mA | 250V | 35A/250VAC | 140 | 160 | 0.36 |
|
| 3720250 | 0250 | 250mA | 250V | 35A/250VAC | 150 | 150 | 0.28 |
|
| 3720200 | 0200 | 200mA | 250V | 35A/250VAC | 170 | 140 | 0.20 |
|
| 3720160 | 0160 | 160mA | 250V | 35A/250VAC | 200 | 130 | 0.14 |
|
| 3720125 | 0125 | 125mA | 250V | 35A/250VAC | 260 | 120 | 0.066 |
|
| 3720100 | 0100 | 100mA | 250V | 35A/250VAC | 300 | 110 | 0.047 |
|
| 3720080 | 0080 | 80mA | 250V | 35A/250VAC | 370 | 100 | 0.023 |
|
| 3720063 | 0063 | 63mA | 250V | 35A/250VAC | 400 | 80 | 0.02 |
|
| 3720050 | 0050 | 50mA | 250V | 35A/250VAC | 500 | 70 | 0.01 |
|
| 3720040 | 0040 | 40mA | 250V | 35A/250VAC | 900 | 90 | 0.009 |
|
| 3721500 | 1500 | 5.00A | 250V | 50A / 250 VAC | 80 | 1300 | 94 |
|
| 3721125 | 1125 | 1.25A | 250V | 35A/250VAC | 95 | 450 | 9 |
|
| 3721200 | 1200 | 2.00A | 250V | 35A/250VAC | 85 | 600 | 23 |
|
| 3721100 | 1100 | 1.00A | 250V | 35A/250VAC | 110 | 360 | 5.5 |
|
